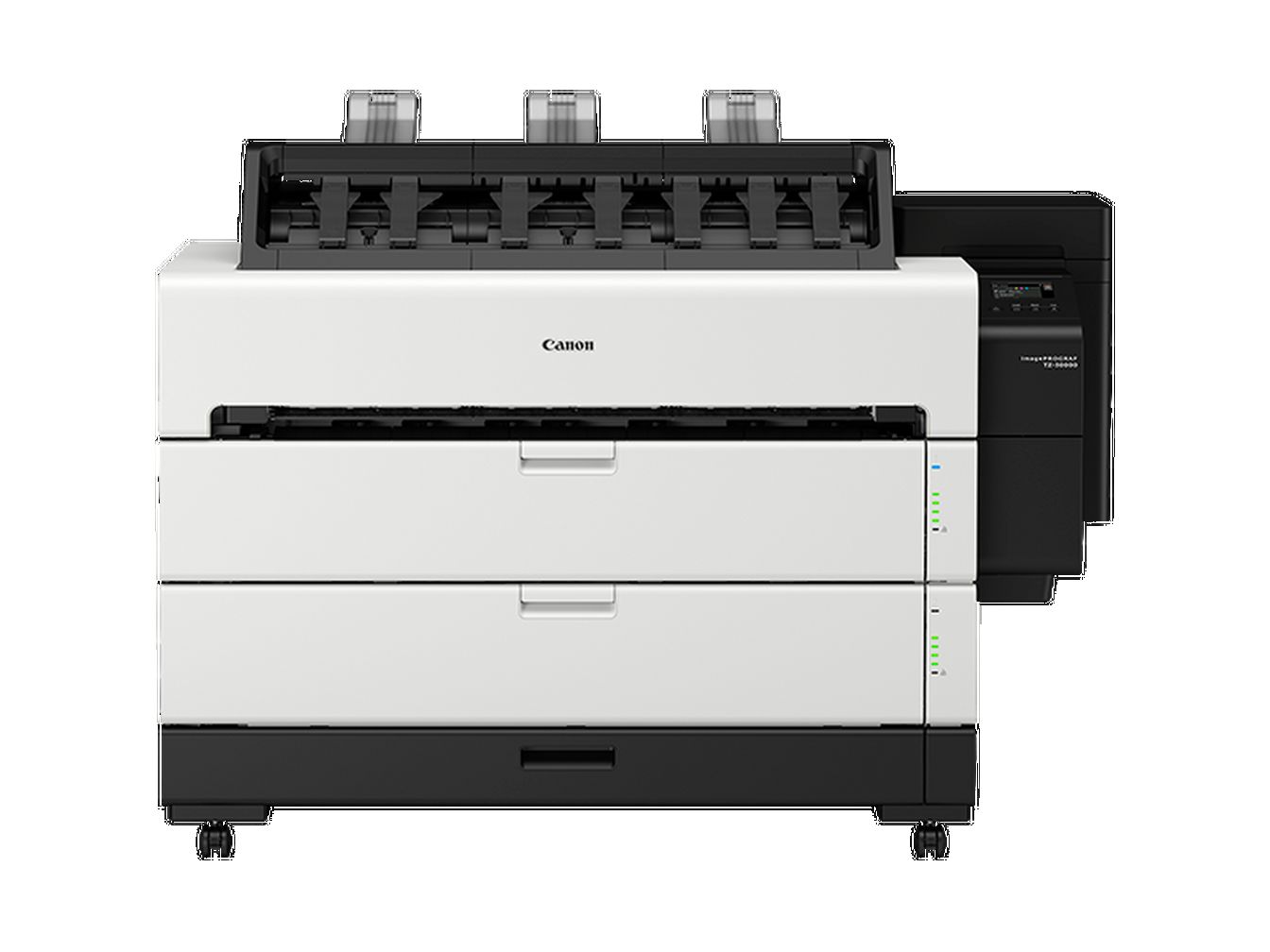

Canon imagePROGRAF TZ-30000

Description

Printer Technology

• Printer Type
  5 Colour 36″
• Print Technology
  Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
• Print Resolution
  2,400 x 1,200 dpi
• Number of Nozzles
  Total : 15,360 nozzles MBK : 5,120 nozzles BK, C, M, Y : 2,560 nozzles each
• Line Accuracy
  ±0.1% or less
  User adjustments necessary. Printing environment and media must match those used for the adjustments.
  CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
• Nozzle Pitch
  1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
• Ink Droplet Size
  minimum 5 pl per colour
• Ink Capacity
  Bundled Starter Ink: 330ml (MBK)/160ml (BK, C, M, Y)
  Sales Ink: 330ml/700ml
• Ink Type
  Pigment inks : 5 colour MBK/BK/C/M/Y
• OS Compatibility
  Microsoft Windows 32 Bit: 7, 8.1, 10
  64 bit : 7, 8.1, 10, Server 2008/R2, Server 2012, Server 2012/R2, 2016, 2019
  Apple Macintosh: macOS 10.12.6 ~ 10.15
• Printer Languages
  HP-GL/2, HP RTL, PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
• Standard Interfaces
  USB B Port: Built-in Hi-Speed USB 2.0
  Ethernet: 10/100/1000 base-T
  Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
  *Please refer to user manual how to activate/deactivate the wireless LAN

Memory

• Standard Memory
  128GB (Physical memory 2GB)
  Expansion slot : No
• Hard Drive
  500GB (Encrypted)

Print Speed

• CAD Drawing
  Uncoated Paper (A1):
  0:14 (Fast Economy Mode), 4.0ppmUncoated Paper (A0):
  0:30 (Fast Economy Mode)
  0:37 (Fast)
  1:06 (Standard)

Media Handling

• Media Feed and Output
  Roll Paper : Two Roll, Front-loading, Front Output/Upper Output
  Cut Sheet : Front-loading, Front Output (Manual feed using media locking lever)
• Media Width
  Roll paper : 203.2mm – 917mm
  Cut sheet : 203.2mm – 917mm
• Media Thickness
  Roll/Cut : 0.07mm – 0.8mm
• Minimum Printable Length
  Roll paper : 203.2mm (Front output), 205mm (Upper output)
  Cut sheet : 203.2 mm
• Maximum Printable Length
  Roll paper : 18 m (Varies according to the OS and application)
  Cut sheet : 610 mm
• Maximum Media Roll Diameter
  175 mm
• Media Core Size
  Internal diameter of roll core: 2″/3″
• Margins Recommended Area
  Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
  Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
• Margins Printable Area
  Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
  Roll paper (borderless) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
  Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
• Media Feed Capacity
  Roll Paper: Two rolls. Automatic switching is possible.
  Cut Sheet: 1 sheet
• Borderless Printing Width (Roll Only)
  [Recommended] 515mm(JIS B2), 594mm(ISO A1), 728mm(JIS B1), 841mm(ISO A0), 10″, 14″, 17″, 24″, 36″
  [Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 8″, 12″, 15″, 16″, 18″, 20″, 22″, 30″, 34″, 300mm, 500mm, 600mm, 800mm and custom roll width (203.2 – 917mm)
  *”Printable” size is printed as micro margin technology, that means is not used with hole of platen.
• Maximum Number of Delivered Prints
  [Upper Output (Top Delivery Tray)]
  Longest stacking length : 1397 mm
  (CAD, 3inch core Uncoated Paper)
  A0 portrait: 100 sheets
  * Mixed size stacking is possible. Maximum 100 sheets.
  (CAD, 2inch core Uncoated Paper)
  A0 portrait: 50 sheets
  * Mixed size stacking is possible. Maximum 50 sheets.
  [Front Output (Basket)]
  1 sheet (Longest stacking length : 1219.2mm)

Power and Operating Requirements

• Power Supply
  AC 100-240V (50-60Hz)
• Power Consumption
  Operation: 157 W or less
  Sleep mode: 2.2W or less
  Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
  Power off: 0.3 W or less
• Operating Environment
  Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
• Accoustic Noise (Power/Pressure)
  Operation: 52 dB (A) (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard)
  Standby: 35 dB (A) or less
  Operation: 7.0 Bels or less (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard)
• Regulations
  Europe: CE mark
  Other countries: CB certification
• Environment Certificates
  TUV, CB

Dimensions and Weight

• Physical Dimensions and Weight
  1548 x 1293 x 1189 mm (Basket Open)
  1548 x 960 x 1189 mm (Basket Closed)
  207 kg
• Packaged Dimensions and Weight
  1704 x 946 x 1373 mm
  274 kg

What’s Included

• What’s in the Box?
  Printer, 1 x print head, 3 inch paper core attachment, 1 set of starter ink tanks, Set up guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), PosterArtist Lite CD-ROM, EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet, 2 x roll holders(spools), Basket, Power Cable
• Software Included
  imagePROGRAF TZ Printer Driver and PosterArtist Lite
  Other software available as Download from Web.

Options

• Optional Items
  2″/3″ Roll Holder: RH2-34

Consumables

• User Replaceable Items
  Ink Tank: PFl-340 (330ml), PFl-740 (700ml)
  Print Head: PF-06
  Maintenance Cartridge: MC-30
